IC4 PS Cup

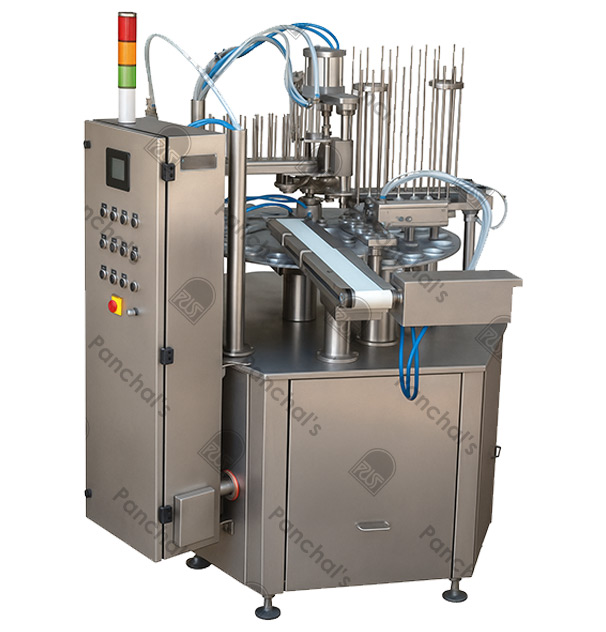

Rotary driven automatic ice cream filling machine for different size of cup
Model : IC4 PS Cup
Backed by rich industry experience, Our Rotary driven automatic filling machine, 4 Head Filling, 4 Track with Single indexing ( Ratchet Type ) gives accuracy, speed and flexibility when handling cream, powders and granules. The machines can be made available as per the requirement of customers starting from single lane up to four lanes. The machines are suitable for filling of Ice-cream in Small / Big Cup as well as Big / Small Cone. The Machine is to be connected in line with the constant Freezer. The Variable Speed allows arrangement to equivalent the freezer capacity. Its stainless-steel construction, easy-to-remove tooling and hopper allow for simple cleaning and maintenance with latest techniques in compliance with set industry standards.
Our Linear Type Filling Machines for Ice-Cream Cup, Curd, Yogurt, Lassi, Ghee, Shrikhand, Chees, Ketchup etc.
Features
Basic Functions
* Customisations for additional stations are possible.
Automatic Cup Release
(Double Head Type)
Sensing
Filling
Automatic Lid Placing
Ejecting
Specifications
Machine Type
Rotary , 4 head filling, 4 track with single indexing (ratchet type) and (servo driven cam indexing type - optional)
Product
Ice cream
Application
To fill and pack ice cream in cups
Output Capacity
1400 to 12000 pcs / hour of 50-ml or 100-ml paper/plastic cup ( Up to 13000 pcs/hr in servo driven model )
Filling
By continuous freezer / ingredient fruit feeder (ingredient fruit feeder is not included in the quotation)
Filling Quantity
50 to 100 ml cups
Filling accuracy
Depends upon the consistency of the output of the continuous freezer
PLC
Allen Bradley Make
HMI
Allen Bradley Make
Pneumatic Parts
Festo
Power Requirement
1.0 kw
Air Supply
Approximately 1500-liter/minute at 6 bar
Base Structure
S.S. square pipe
Side Guard
S.S. 304
Panel
S.S. 304
Contact parts
Food grade material or S.S. 304
Base
Adjustable Ball feet
