IC60 PS Cup

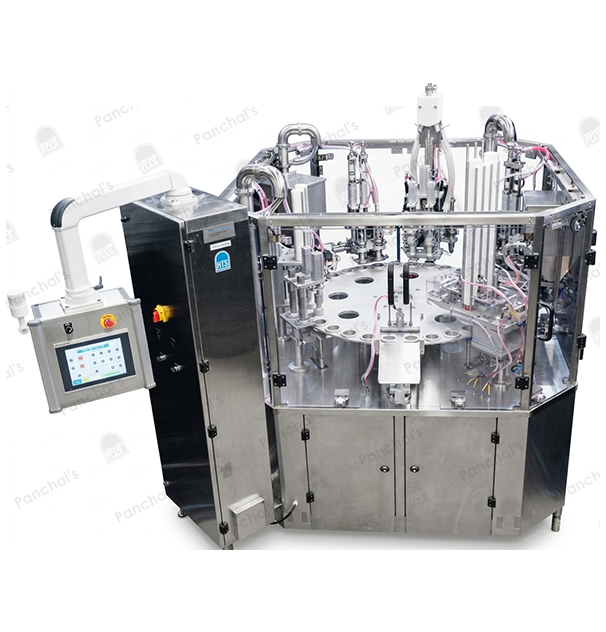

Automatic high speed ice cream cup filling & Sealing machine
Model : IC60 PS Cup
Backed by rich industry experience, Our Rotary driven automatic Ice cream Cups filling machine, Double Head Filling, Single Track with Double indexing gives accuracy, speed and flexibility when handling cream, powders and granules. Its stainless-steel construction, easy-to-remove tooling and hopper allow for simple cleaning and maintenance with latest techniques in compliance with set industry standards.
Our Linear Type Filling Machines for Ice-Cream Cups, Curd, Yogurt, Lassi, Ghee, Shrikhand, Chees, Ketchup etc.
Features
Basic Functions
* Customisations for additional stations are possible.
Automatic Cup Release
Sensing
Chocolate Spray
Filling
Chocolate Topping
Dry Nut Topping
Automatic Lid Placing
Cone Crimping
Ejecting
Specifications
Machine Type
Rotary machine, double head filling, single track with double indexing ( ratchet type ) and ( servo driven cam indexing type - optional )
Product
Ice cream ( 2 in 1 ice cream, with ripple, with ingredients by purchasing required attachments )
Application
To fill and pack ice cream in cups
Output Capacity
700 to 6000 pcs / hour ( Up to 7000 pcs/hr in servo driven model )
Filling
By continuous freezer
Filling Accuracy
Depends on the output of continuous freezer
Ingredient Size
8 x 8 x 8 mm for better distribution
Round Cup
Max 80mm Æ, 75mm height
PLC
Allen Bradley Make
HMI
Allen Bradley Make
Pneumatic Parts
Festo
Base Structure
S.S. square pipe
Base Structure
S.S. square pipe
Side Guard
S.S. 304
Panel
S.S. 304
Contact parts
Food grade material or S.S. 304
Base
Adjustable Ball feet
