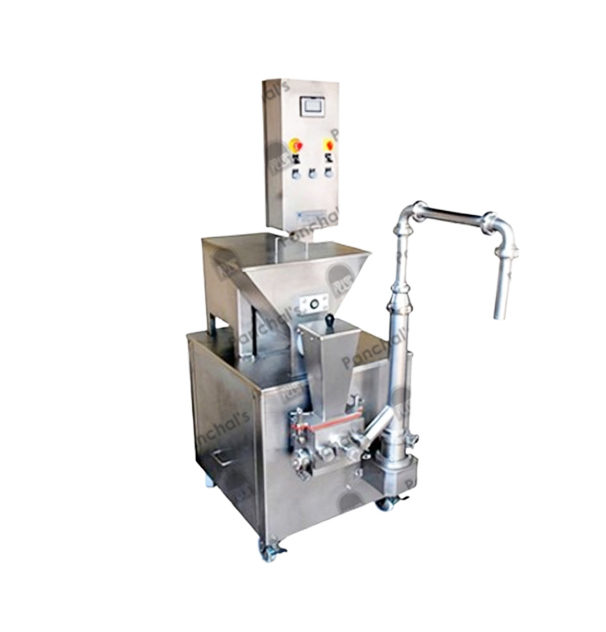

Ingredient Fruit Feeder
Range of ripple machine with continuous ice-cream freezer.
Model : IFF 100 to 1200
The fruit feeder machine injects small pieces of ingredients, such as nuts, chocolate chips, fresh or candied fruits into ice cream.
The Ingredient fruit feeder gives a striking look with delicious ice cream that has various elements like chocolate, nuts, fruit, dried fruits, candies, cookies, caramel, chocolate chips, raisins & fudge which are just a small selection of the many types of ingredients that are used to be added to the ice cream. Fruit feeder is a compact machine with controlled addition of ingredients that has a continuous flow of ice cream.
Features
Basic Functions
Chocolate Feeding of ingredients from hopper to rotor.
Injection of ingredient to ice cream in rotor body.
Evenly mixing of ingredients with ice cream in mixer.
Ice cream output with mixed ingredients.
Specifications
Machine Type
Rotor Blade Type, with 3 separate variable frequency drives for feeder, rotor and mixer.
Application
To add Dry / Wet Ingredients to the ice cream flow.
Output Capacity
Varies from 100 lph to 2000 lph based on selected model.
Ice cream flow
By continuous freezer.
Variable Frequency Drives
Allen Bradley Make.
Power requirements
1.5 kw.
Electrical Supply
3 phase with earthing and neutral.
Base Structure
S.S. Square Pipe.
Side Guard
S.S. 304.
Panel
S.S. 304.
Contact Parts
Food grade material or S.S. 304.
Base
2 lockable + 2 non lockable castor wheels.
