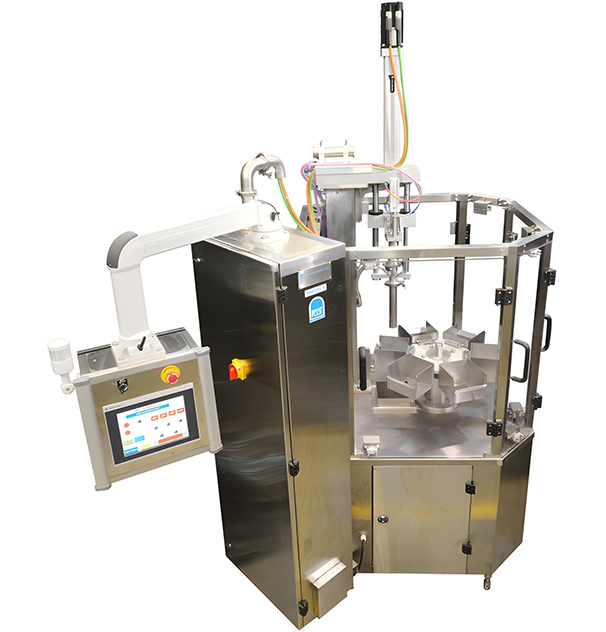

Carton / Bulk Filling Machine
Automatic filler for multi carton ice cream.
Model : IC 1500 PS
We feel appreciated when national and global brand leaders select us to develop sophisticated filling machines for their food products.
Features
Basic Functions
* Customisations for additional stations are possible.
Manual carton placing
Sensing
Filling
Manual Ejecting
Specifications
Machine Type
Rotary , single head filling, single track with single indexing ( Pneumatic type )
Product
Ice cream ( plain, with fruit ) ( with ripple, with ingredients by purchasing required attachments )
Application
To fill ice cream in cartons with minimal variation compared to manual packaging
Output Capacity
150 to 1600 pcs / hour
Filling
By continuous freezer
Filling Quantity
750 to 5000 ml cartons
Filling Accuracy
Depends on the output of continuous freezer . With a good quality of freezer, accuracy of +- 1.3% of filling volume can be achieved
PLC
Allen Bradley Make
HMI
Allen Bradley Make
Pneumatic Parts
Festo
Power Requirement
0.37 kw
Air Supply
S.S. square pipe
Base Structure
S.S. square pipe
Side Guard
S.S. 304
Panel
S.S. 304
Contact Parts
Food grade material or S.S. 304 or S.S 316
Base
Adjustable Ball feet
