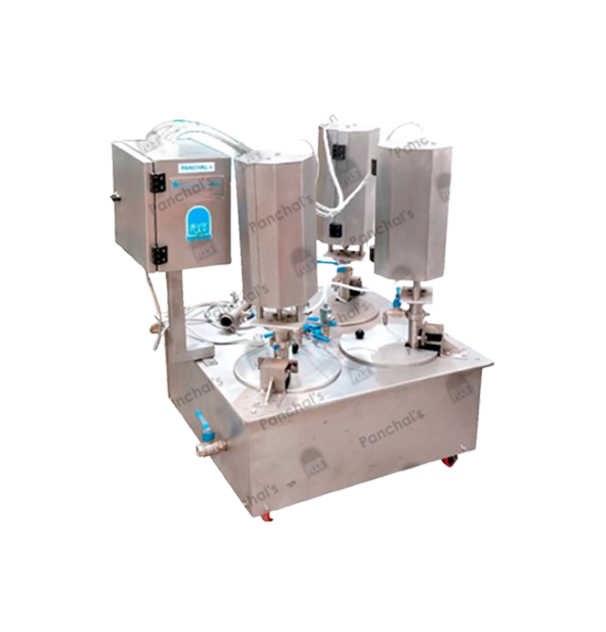

Ripple Machine
Range of ripple machine with continuous ice-cream freezer.
Model : RP 100 X 3
The Ripple is a pump station, compact and easy to use. It is the ideal equipment to make ice cream with flakes and to inject syrups, viscous products or chocolate in the ice cream flow, by means of automatic fillers or with continuous fillers with special nozzles.
Features
Specifications
Ripple Flavour
Single, Double, Triple and Four Flavour Options
Ripple Viscosity
Up to 2000 cp & 60 Brix %
Machine Type
Reciprocating Pump Type
Application
To supply ripple to for using in filling machine our continuous freezer output
Output Capacity
Varies from 2 to 8 litre / minute
Tank Capacity
8 litres per flavour tank
Power requirement
0.2 kw
Air Supply
50 to 200 litre/ min based on different models at 6 bar working pressure
Electrical Supply
3 phase with earthing and neutral
Base Structure
S.S. Square Pipe
Side Guard
S.S. 304
Panel
S.S. 304
Contact Parts
Food grade material or S.S. 304
Base
2 lockable + 2 non lockable castor wheels
