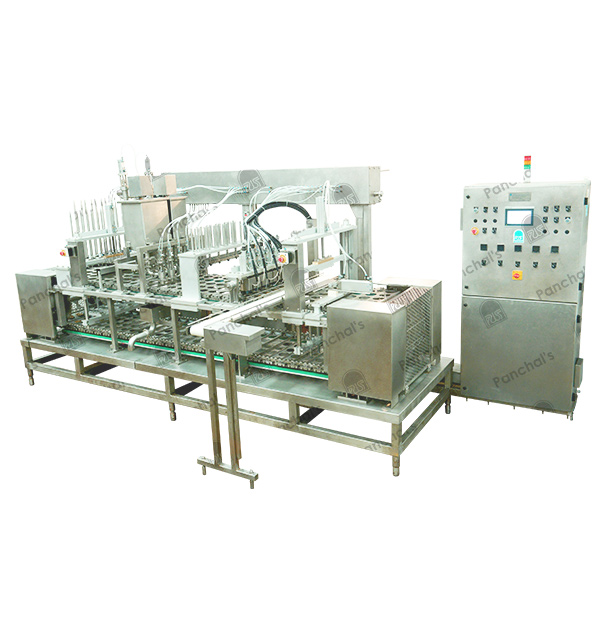

Curd Cup Filling Linear Machine
Automatic rotary type cup filling & sealing machine for curd, yoghurt etc.
Model : LF5
We PWS brings you automatic rotary type cup fill and sealing machine appropriate for packing Curd, Dahi, Yogurt, Lassi ,Juice, Honey,Water, Beverages, Butter milk etc. This Machine Comes with completely automated solution for diverse food processing applications including yogurt, dips, humus, chees, Honey, fruit paste, cup water, milk, etc. This machine is suitable for any sealable cups with heat sealable laminates / pre cut aluminium foi
Features
Basic Functions
* Customisations for additional stations are possible
Automatic cup Release
Sensing
Filling
Automatic Foil / Lid Placing
Heat Sealing
Ejecting
Specifications
Machine Type
Fully Automatic , Linear Machine , 5 Head Type , single indexing ( Servo Driven ), with ethernet controlled Solenoid valve system
Product
Curd / Lassi ( Freely flowable )
Application
To fill and seal freely flowable products in cups
Output Capacity
6000 pcs/hr fix speed all sizes
Filling
By gravity
Filling Volume
50 to 500 gm cups
Filling Accuracy
+- 1% of filling volume
Round Cup Diameter
Maximum 95-mm
Round Cup Height
Maximum 125-mm
PLC
Allen Bradley Make
HMI
Allen Bradley Make
Pneumatic Parts
Festo
Power Requirement
6 kw
Air Supply
Approximately 2000-liter/min at 7 bar Working Pressure
Base Structure
S.S. square pipe
Side Guard
S.S. 304
Panel
S.S. 304
Contact Parts
Food grade material or S.S. 304
Base
Adjustable Ballfeet
