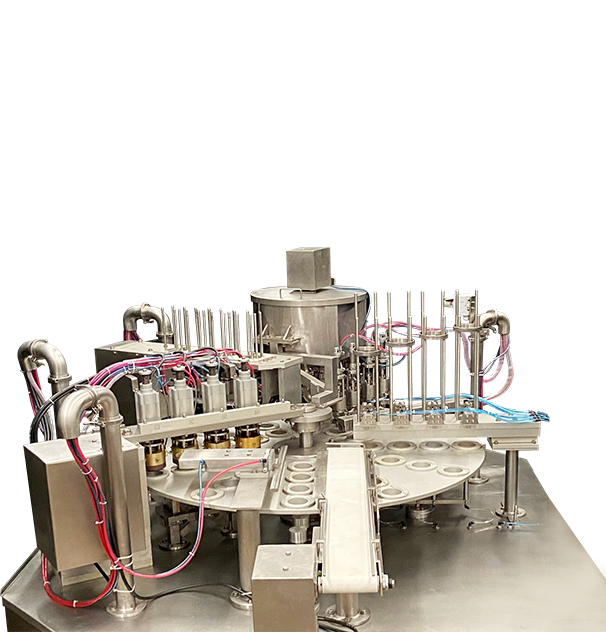

Curd / Lassi Cup Filling Machine
Automatic rotary type cup filling & sealing machine
Model : CF600X4P
PWS brings you an automatic rotary type cup filling & sealing machine which is appropriate for packing curd, dahi, yogurt, lassi, juice, honey, buttermilk, etc. This machine comes with a completely automated solution for diverse food processing applications including yogurt, dips, humus, chees, honey, fruit paste, cup water, milk, etc. This machine is suitable for any sealable cups with heat sealable laminated/ precut aluminum foil.
Features
Basic Functions
Automatic cup Release
Sensing
Filling
Automatic Foil / Lid Placing
Heat Sealing
Ejecting
Specifications
Machine Type
Rotary , Double head filling, single track with single indexing ( ratchet type )
Product
Curd/Lassi/Any freely flowable products like Honey, Cheess, Oil, Ghee, Juice, Coffee. Viscous products like srikhand/yogurt by attaching additional accessories.
Application
To fill and seal freely flowable products in cups
Output Capacity
400 pcs/hr fix speed for 100 to 500 gm cups [depends upon product, quality of cups, foil lacquer]
Filling
By gravity
Filling Accuracy
+- 1% of filling volume
Filling Quantity
100 to 500 gm cups
Rounded Cup Diameter
Maximum 95-mm
Rounded Cup Height
Maximum 125-mm
PLC
Allen Bradley Make
HMI
Allen Bradley Make
Pneumatic Parts
Festo
Power Requirement
1.5 kw
Air Supply
Approximately 1000-liter/min at 6 bar
Base Structure
S.S. square pipe
Side Guard
S.S. 304
Panel
S.S. 304
Contact Parts
Food grade material or S.S. 304
Base
Adjustable Ballfeet
