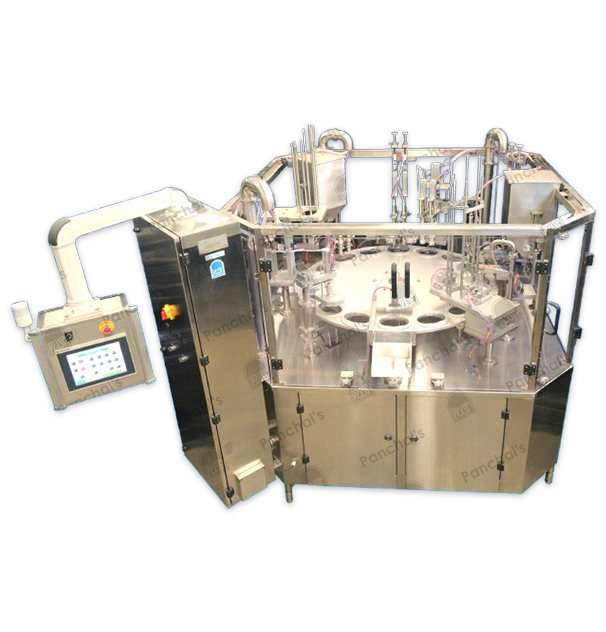

Tub Filling Machine
Automatic filling machine for multi flavour sundae ice cream in plastic tubs.
Model : RTF 20 PS
Our Rotary Ice Cream Tub Filling Machine can filled Ingredients like nuts, chocolate chips and syrups like chocolate and other flavours mix with variety of ice creams in Sundae Tub gives attractive flower looks.
Features
Basic Functions
Automatic Tub Release
Sensing
Filling – Multi Flavour / Twisting
Chocolate Topping – Optional
Dry Nut Topping – Optional
Automatic / Manual Lid Placing
Automatic / Manual Lid Placing
Automatic / Manual Lid Pressing
Ejecting
Specifications
Machine Type
Rotary, Single head Filling, Single Track with Single Indexing
Product
Ice cream
Application
To fill and pack ice cream in tubs
Output Capacity
700 to 2000 tubes per hour
Filling
By Continuous Freezer
Filling Quantity
Up to 1 liter tubs
Filling Accuracy
Depends 100% upon the continuous freezer output
PLC
Allen Bradley Make
HMI
Allen Bradley Make
Pneumatic Parts
Festo
Power Requirement
2 kw
Electrical Supply
3 Phase with earthing and neutral
Air Supply
Approximately 1500-liter/minute at 6 bar from 12 mm I.D. pipe at machine header
Base Structure
S.S. square pipe
Side guard
S.S. 304
Panel
S.S. 304
Contact parts
Food grade material or S.S. 304
Base
Adjustable Ballfeet
