Ice Cream Cup Filling Machine

Model : IC4PS Cup




Ice Cream Cup Filling Machine

Model : IC4PS Cup

Backed by rich industry experience, Our Rotary driven automatic filling machine, 4 Head Filling, 4 Track with Single indexing ( Ratchet Type ) gives accuracy, speed and flexibility when handling cream, powders and granules. The machines can be made available as per the requirement of customers starting from single lane up to four lanes. The machines are suitable for filling of Ice-cream in Small / Big Cup as well as Big / Small Cone. The Machine is to be connected in line with the constant Freezer. The Variable Speed allows arrangement to equivalent the freezer capacity. Its stainless-steel construction, easy-to-remove tooling and hopper allow for simple cleaning and maintenance with latest techniques in compliance with set industry standards.

Our Linear Type Filling Machines for Ice-Cream Cup, Curd, Yogurt, Lassi, Ghee, Shrikhand, Cheese, Ketchup etc.

Features

  • PLC Controlled Operation Machines
  • Available with Servo Drive
  • It is a fully automatic machine
  • Accurate filling at promised speed
  • All contact parts are of SS 304 Food Grade material
  • An optional attachment for chocolate spray can be added to the machine

Basic Functions

  • Automatic Cup Release
  • Sensing
  • Filling
  • Automatic Lid Placing
  • Ejecting
*Customisations for additional stations are possible.

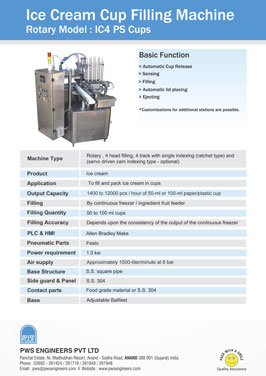

Specifications

  • Machine Type : Rotary , 4 head filling, 4 track with single indexing (ratchet type) and (servo driven cam indexing type - optional)

  • Product : Ice cream
  • Application : To fill and pack ice cream in cups
  • Output Capacity : 1400 to 12000 pcs / hour of 50-ml or 100-ml paper/plastic cup ( Up to 13000 pcs/hr in servo driven model )

  • Filling : By continuous freezer / ingredient fruit feeder (ingredient fruit feeder is not included in the quotation)

  • Filling quantity : 50 to 100 ml cups
  • Filling accuracy : Depends upon the consistency of the output of the continuous freezer

  • PLC : Allen Bradley Make



  • HMI : Allen Bradley Make
  • Pneumatic Parts : Festo
  • Power requirement : 1.0 kw
  • Air supply : Approximately 1500-liter/minute at 6 bar
  • Base Structure : S.S. square pipe
  • Side guard : S.S. 304
  • Panel : S.S 304
  • Contact parts : Food grade material or S.S. 304
  • Base : Adjustable Ball feet
