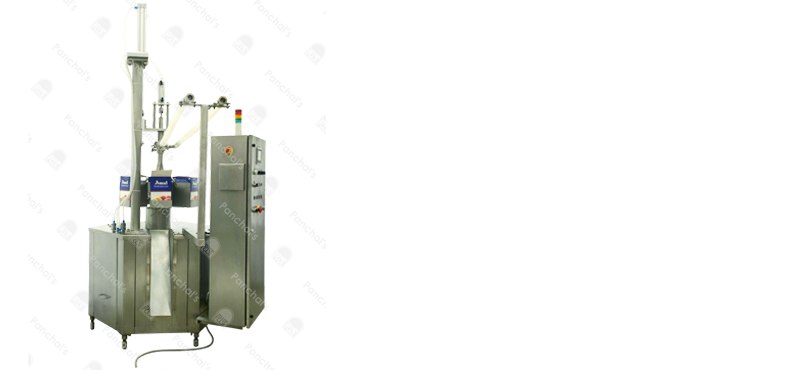

Ice cream Paper Carton / Bulk Filling Machine

Model : IC1600P

Automatic Filler for multi carton ice cream.




Ice cream Paper Carton / Bulk Filling Machine

Model : IC1600P

Our Rotary Carton Filling Machine, Single Head Filling, Single Track with Single indexing ( Pneumatic Type ) can filled Ingredients like nuts, chocolate chips and syrups like chocolate and other flavours mix with variety of ice creams in Sundae Tub gives attractive flower looks..

Features

  • PLC Controlled Operation Machines
  • Injects syrups mix with Ice Creams.
  • Made from stainless steel
  • This is an Automatic Filler for multi flower sundae ice cream in plastic tubs.

  • Tub Feeding & Lid fixing is manually.

Basic Functions

  • Manual carton placing
  • Sensing
  • Filling
  • Manual Ejecting
*Customisations for additional stations are possible.

Specifications

  • Machine Type : Rotary , single head filling, single track with single indexing ( Pneumatic type )

  • Product : Ice cream ( plain, with fruit ) ( with ripple, with ingredients by purchasing required attachments )

  • Application : To fill ice cream in cartons with minimal variation compared to manual packaging

  • Output Capacity : 150 to 1600 pcs / hour
  • Filling : By continuous freezer
  • Filling quantity : 750 to 5000 ml cartons
  • Filling Accuracy : Depends on the output of continuous freezer . With a good quality of freezer, accuracy of +- 1.3% of filling volume can be achieved

  • PLC : Allen Bradley Make



  • HMI : Allen Bradley Make
  • Pneumatic Parts : Festo
  • Power requirement : 0.37 kw
  • Air supply : Approximately 800-liter/minute at 6 bar
  • Base Structure : S.S. square pipe
  • Side guard : S.S. 304
  • Panel : S.S 304
  • Contact parts : Food grade material or S.S. 304 or S.S 316
  • Base : Adjustable Ball feet
