LINEAR

ICE CREAM CONE FILLING MACHINE

ICLF 6 PS Cone

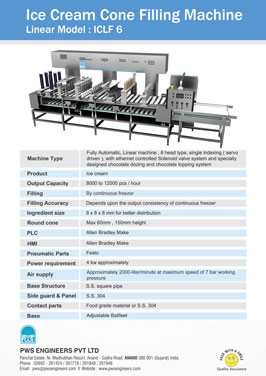

LINEAR ICE CREAM CONE FILLING MACHINE


Model : ICLF 6 PS Cone

Backed by rich industry experience, Our Linear servo driven fully automatic filling machine, 6 Head Type, Single Indexing gives accuracy, speed and flexibility when handling cream, powders and granules. Our Servo-Driven filling machine is manufacture to match your specific items requirements. Its stainless-steel construction, easy-to-remove tooling and hopper allow for simple cleaning and maintenance with latest techniques in compliance with set industry standards.

Our Linear Type Filling Machines for Ice-Cream Cones, Curd, Yogurt, Lassi, Ghee, Shrikhand, Chees, Ketchup etc.

Features

  • PLC Controlled Machines
  • Available with Servo Drive
  • Accurate filling at promised speed
  • 1400 to 12000 Fills Per Hour

Basic Functions

  • Automatic Cone Release - double head type
  • Sensing
  • Chocolate spray
  • Filling
  • Chocolate topping



  • Dry nut topping
  • Automatic Lid Placing
  • Cone crimping
  • Ejecting
*Customisations for additional stations are possible.

Specifications

  • Machine Type : Fully Automatic, Linear machine , 6 head type, single indexing ( servo driven ), with ethernet controlled Solenoid valve system and specially designed chocolate dozing and chocolate topping system

  • Product : Ice cream
  • Output Capacity : 8000 to 12000 pcs / hour
  • Filling : By continuous freezer
  • Filling Accuracy : Depends upon the output consistency of continuous freezer

  • Ingredient size : 8 x 8 x 8 mm for better distribution
  • Round cone : Max 60mm Æ, 150mm height
  • PLC : Allen Bradley Make



  • HMI : Allen Bradley Make
  • Pneumatic Parts : Festo
  • Power requirement : 4 kw approximately
  • Air supply : Approximately 2000-liter/minute at maximum speed of 7 bar working pressure

  • Base Structure : S.S. square pipe
  • Side guard : S.S. 304
  • Panel : S.S 304
  • Contact parts : Food grade material or S.S. 304
  • Base : Adjustable Ball feet


Over 5 decades of experience - we’ll ensure, you get the best guidance.
