ROTARY

ICE CREAM CONE FILLING MACHINE
Model : IC60 PS Cone

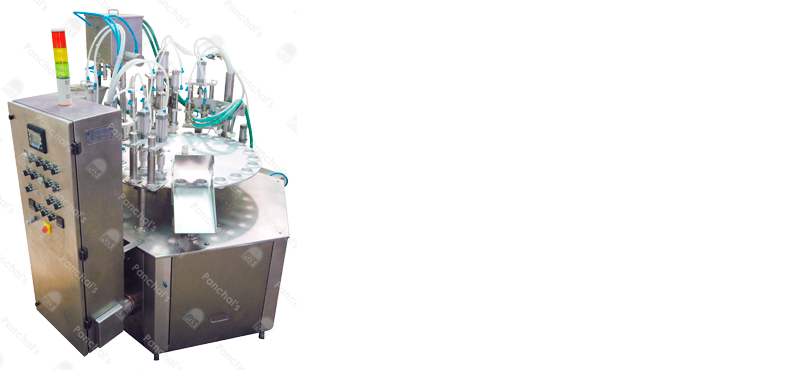

ROTARY ICE CREAM CONE FILLING MACHINE

Model : IC60 PS Cone

Backed by rich industry experience, Our Rotary driven automatic Ice Cream Cone Filling Machine, Double Head Filling, Single Track with Double Indexing ( Ratchet Type ) gives accuracy, speed and flexibility when handling cream, powders and granules. Its stainless-steel construction, easy-to-remove tooling and hopper allow for simple cleaning and maintenance with latest techniques in compliance with set industry standards.

Our Linear Type Filling Machines for Ice-Cream Cone, Curd, Yogurt, Lassi, Ghee, Shrikhand, Cheese, Ketchup etc.

Features

  • PLC Controlled Machines
  • Accurate filling at promised speed
  • Can also Fill Fancy variety of Ice Cream

Basic Functions

  • Automatic Cone Release
  • Sensing
  • Chocolate spray
  • Filling
  • Chocolate topping



  • Dry nut topping
  • Automatic Lid Placing
  • Cone crimping
  • Ejecting
*Customisations for additional stations are possible.

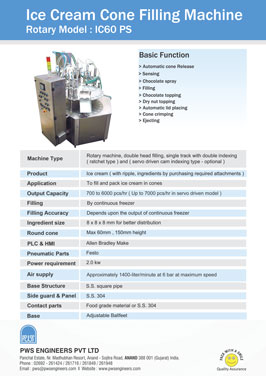

Specifications

  • Machine Type : Rotary machine, double head filling, single track with double indexing ( ratchet type ) and ( servo driven cam indexing type - optional )

  • Product : Ice cream ( 2 in 1 ice cream, with ripple, with ingredients by purchasing required attachments )

  • Application : To fill and pack ice cream in cones
  • Output Capacity : 700 to 6000 pcs / hour ( Up to 7000 pcs/hr in servo driven model )

  • Filling : By continuous freezer
  • Filling Accuracy : Depends on the output of continuous freezer
  • Ingredient size : 8 x 8 x 8 mm for better distribution
  • Round cone : Max 60mm Æ, 150mm height



  • PLC : Allen Bradley Make
  • HMI : Allen Bradley Make
  • Pneumatic Parts : Festo
  • Power requirement : 2.0 kw
  • Air supply : Approximately 1400-liter/minute at 6 bar at maximum speed
  • Base Structure : S.S. square pipe
  • Side guard : S.S. 304
  • Panel : S.S 304
  • Contact parts : Food grade material or S.S. 304
  • Base : Adjustable Ball feet
