Sorbet Tube / Cup Filling Rotary Machine

Model: CAF600P




Sorbet Tube / Cup Filling Rotary Machine

Model: CAF600P

We PWS brings you automatic rotary type cup fill and sealing machine appropriate for packing Curd, Dahi, Yogurt, Lassi ,Juice, Honey,Water, Beverages, Butter milk etc. This Machine Comes with completely automated solution for diverse food processing applications including yogurt, dips, humus, cheese, Honey, fruit paste, cup water, milk, etc. This machine is suitable for any sealable cups with heat sealable laminates / pre cut aluminium foil.

Features

  • PLC controlled operations and it is a fully automatic machine.
  • All contact parts are of SS 304 food grade material
  • Single & Double track models
  • Suitable for films from reel or pre-cut lids.

Basic Functions

  • Automatic cup Release
  • Sensing
  • Filling



  • Automatic Foil / Lid Placing
  • Heat Sealing
  • Ejecting

Specifications

  • Machine Type: Fully Automatic , Rotary , Single head filling, single track with single indexing ( ratchet type )

  • Product: Sorbet
  • Application: To fill and seal Sorbet in paper tubes/cups

  • output capacity : 2100 pcs/hr fix speed [depends upon product, quality of cups, foil lacquer]

  • Filling : By Continuous Freezer
  • Filling Quantity: Up to 120 gm cups
  • PLC : Allen Bradley Make
  • HMI : Allen Bradley Make



  • Pneumatic Parts : Festo
  • Power requirement : 1.0 kw
  • Air Supply : Approximately 600-liter/min at 6 bar
  • Base Structure : S.S. square pipe
  • Side guard : S.S. 304
  • Panel : S.S. 304
  • Contact parts : Food grade material or S.S. 304
  • Base : Adjustable Ballfeet


Media

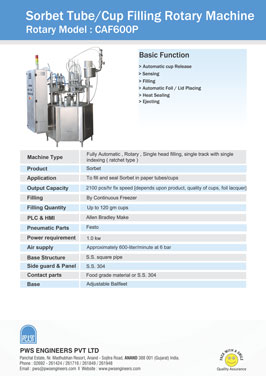

Download PDF to Print
