Curd / Lassi Cup Filling Rotary Machine

Model: CF600 X 2 P




Curd / Lassi Cup Filling Rotary Machine

Model: CF600 X 2 P

We PWS brings you automatic rotary type cup fill and sealing machine appropriate for packing Curd, Dahi, Yogurt, Lassi ,Juice, Honey,Water, Beverages, Butter milk etc. This Machine Comes with completely automated solution for diverse food processing applications including yogurt, dips, humus, cheese, Honey, fruit paste, cup water, milk, etc. This machine is suitable for any sealable cups with heat sealable laminates / pre cut aluminium foil.

Features

  • PLC controlled operations and it is a fully automatic machine.
  • All contact parts are of SS 304 food grade material
  • Single & Double track models
  • Suitable for films from reel or pre-cut lids.

Basic Functions

  • Automatic cup Release
  • Sensing
  • Filling



  • Automatic Foil / Lid Placing
  • Heat Sealing
  • Ejecting
*Customisations for additional stations are possible

Specifications

  • Machine Type: Rotary , Double head filling, single track with single indexing ( ratchet type )

  • Product: Curd/Lassi/Any freely flowable products like Honey, Cheess, Oil, Ghee, Juice, Coffee. Viscous products like srikhand/yogurt by attaching additional accessories.

  • Application: To fill and seal freely flowable products in cups

  • output capacity : 2400 pcs/hr fix speed for 100 to 500 gm cups [depends upon product, quality of cups, foil lacquer]

  • Filling : By gravity
  • Filling Accuracy : +- 1% of filling volume
  • Filling Quantity: 100 to 500 gm cups
  • Rounded cup diameter: Maximum 95-mm
  • Rounded cup Height: Maximum 125-mm



  • PLC : Allen Bradley Make
  • HMI : Allen Bradley Make
  • Pneumatic Parts : Festo
  • Power requirement : 1.5 kw
  • Air Supply : Approximately 1000-liter/min at 6 bar
  • Base Structure : S.S. square pipe
  • Side guard : S.S. 304
  • Panel : S.S. 304
  • Contact parts : Food grade material or S.S. 304
  • Base : Adjustable Ballfeet


Media

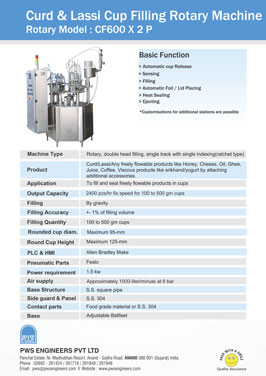

Download PDF to Print
